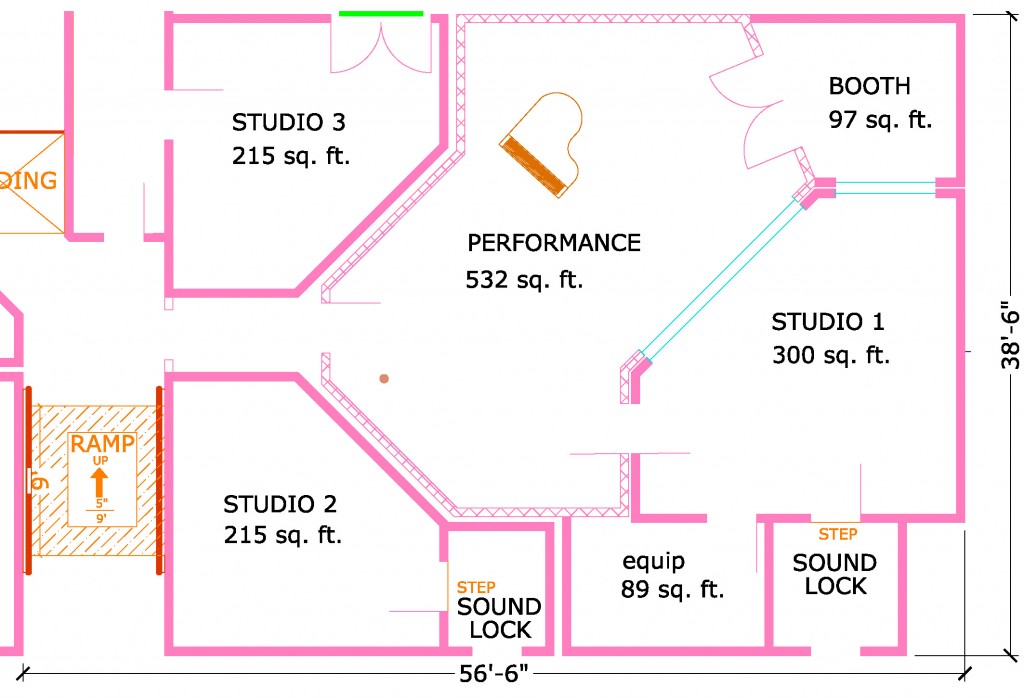

Floor Plan for Multiple Room Facility Read More »
Clink Related Links below for additional information.
Floor Plan Concept Most Used for Recording Studios Read More »

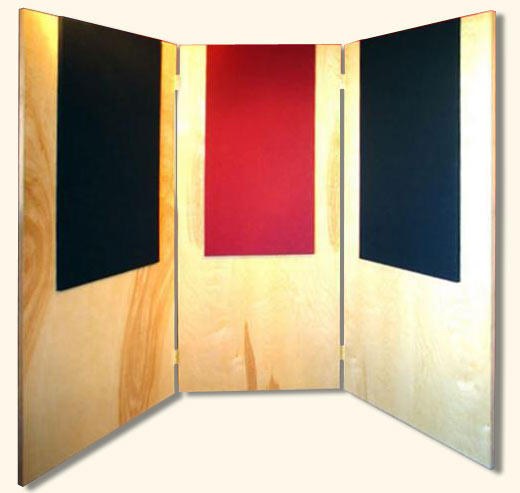

This booth is an easy, affordable, and pragmatic approach to creating a portable and flexible acoustical space. It can be placed in a large room to provide for an intimate acoustical environment or placed adjacent to an acoustically treated wall/corner. It can also be capped with a 3’x 4’ acoustical panel to provide for additional
Easy to Build Vocal Booth Read More »

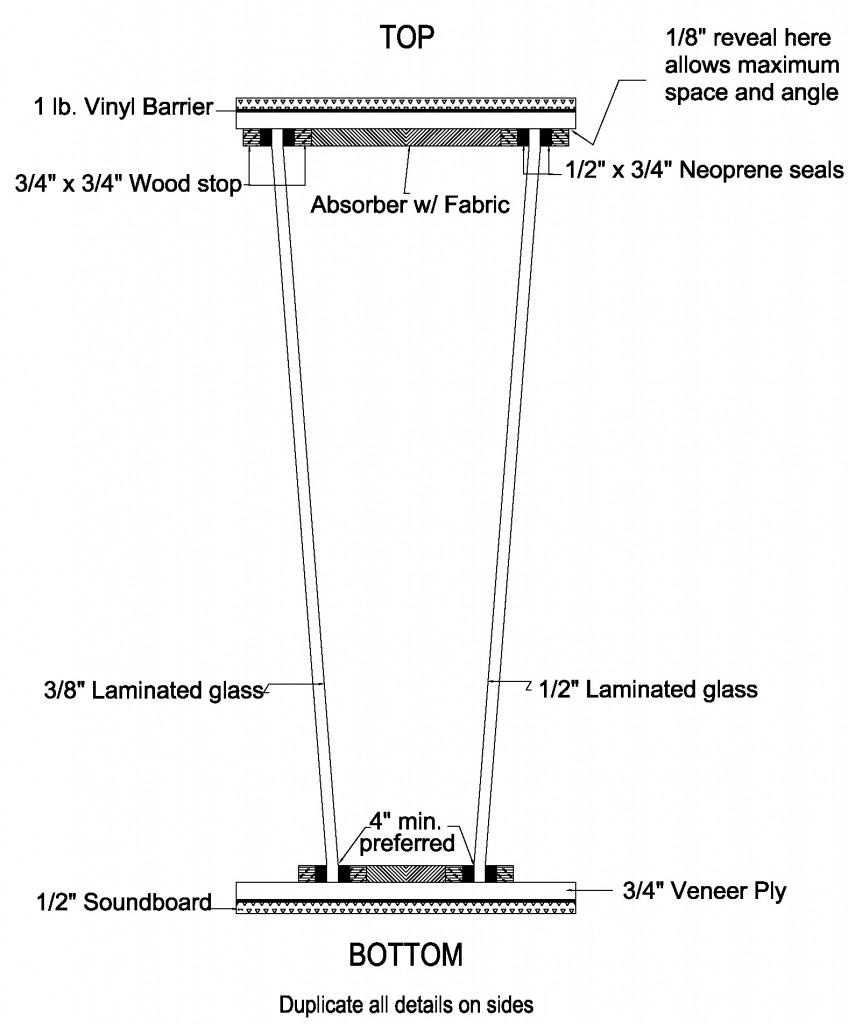

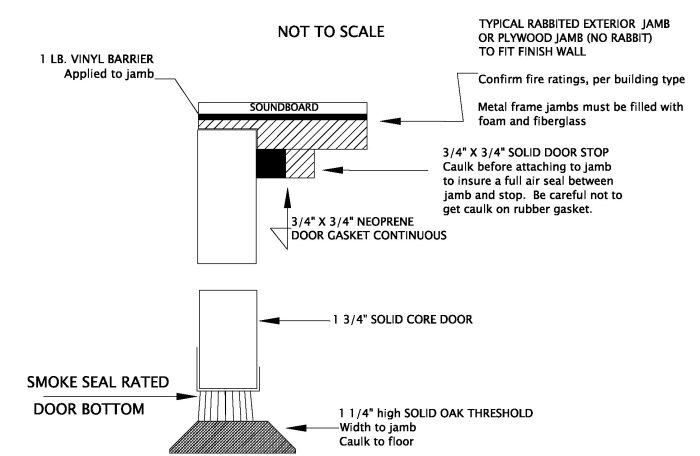

Build-able Sound Control Window GENERAL ASSEMBLY GUIDELINES FOR SOUND CONTROL WINDOWINTERIOR USE ONLY Verify all conditions, building regulations, fire codes, before placing this window. Installers or fabricators, are responsible for the overall performance and suitability of window.• Glue 1 lb. Vinyl barrier to jamb.• Apply acoustical caulking to frame opening, then place 1/2”
This details an effective way to add isolation with a minimum amount of space and difficulty. We strongly recommend all walls and ceiling be treated equally. Even though you may think one wall is more important than another, treating just a portion of the room will not yield a significant difference. SPECIFICATIONS FOR WALL
3-Layer Drywall with Vinyl Barrier Detail, New or Existing Read More »
NOTE: This is using RSIC-1 Clip This is a detail for sound resistant wall construction that we commonly use and have had great results with. It is a bit unconventional as it has never been laboratory tested and the use of resilient channel over layering is not often seen. Nonetheless, it has proven to
Sound Control Wall Layering Over Existing Drywall Details Using RSIC-1 Clips Read More »

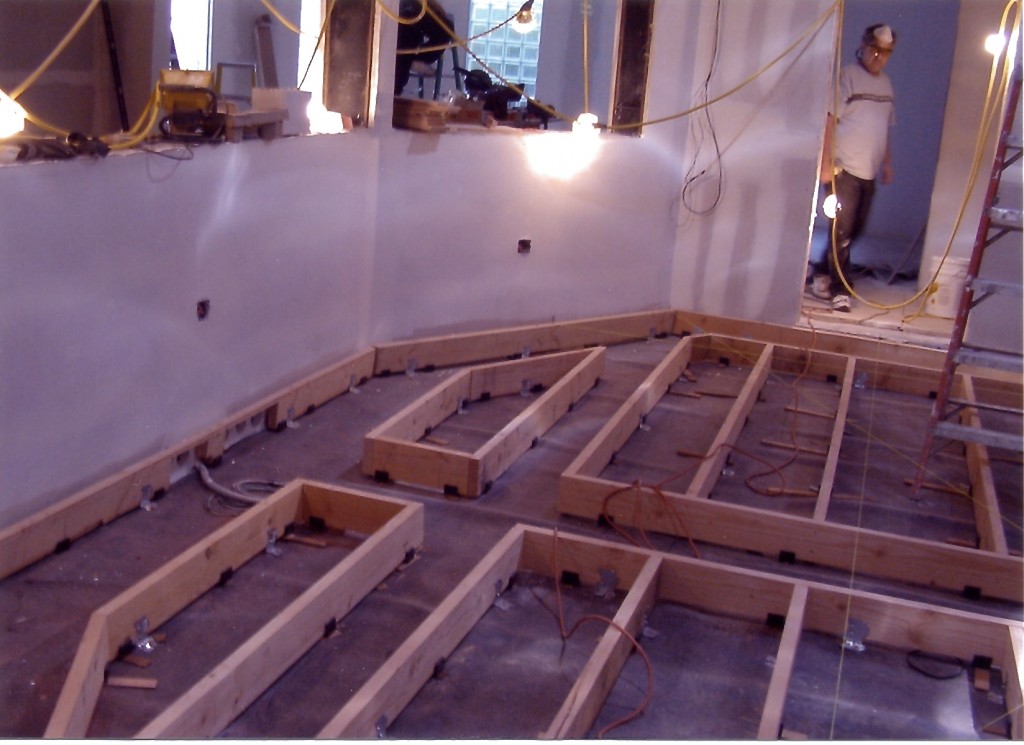

Seismic area require attachment. Simpson A35 staggered @ 48″, 6″ from end. Confirm methods and requirements from local structural engineer. Click here Rubber Decouplers, to purchase our effective floating floor device. As ALWAYS: Verify local building code for suitability. Click here Rubber Decouplers, to purchase our effective floating floor device. For purchase, click
Decoupled Floor Model Read More »
Questions ??? Contact Steven Klein: 818-788-1238
Adding a Partition to Existing Drywall Read More »

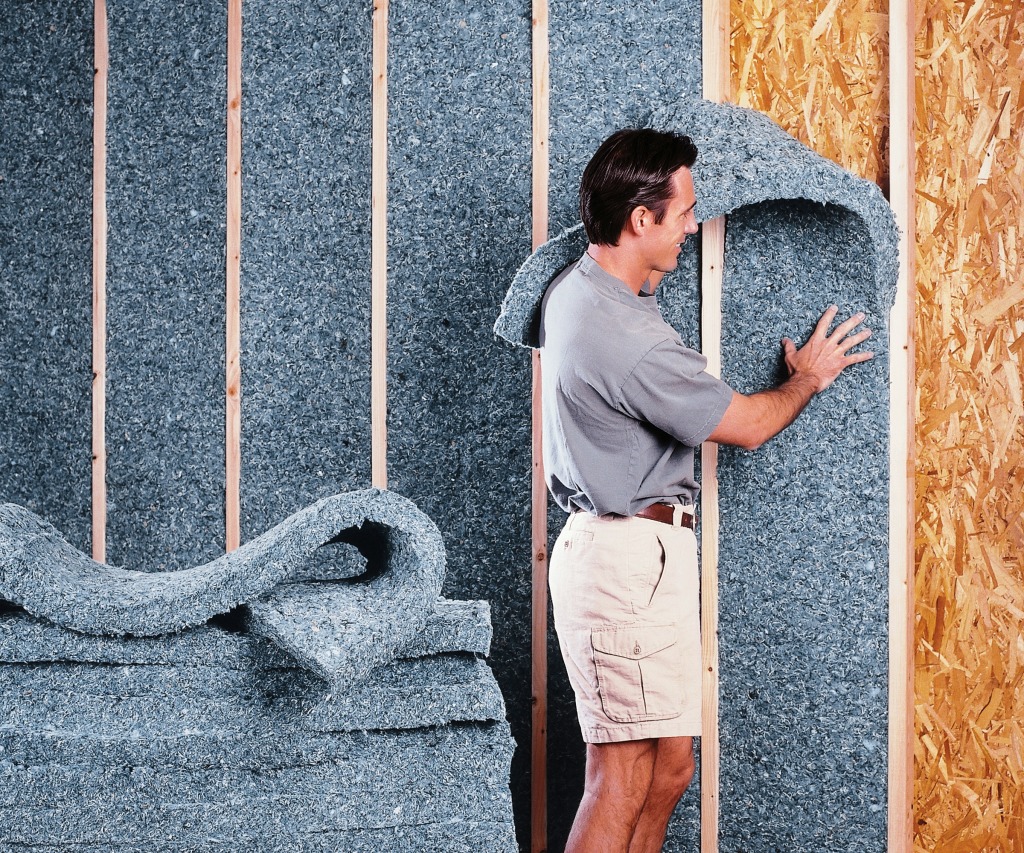

Provided courtesy of: www.soundcontrolroom.com Users assume responsibility when implementing any information from this site. Cavity size Material 2×42×62×82×102×122×142×16 3.5 inch5.5 inch7.5 inch9.5 inch11.5 inch13.5 inch15.5 inch 3” Therm/MWR-13 fiberglass (3.5”), 2” Therm/MWR-13 fiberglass (3.5”), 4” Therm/MWR-19 fiberglass (5.5”), 4” Therm/MWR-19 fiberglass (5.5”), 4” Therm/MWR-30 fiberglass (8.5”), 4” Therm/MWR-30 fiberglass (8.5”), 4” Therm/MW * Therm/MW =
Recommendation for Insulation Read More »
